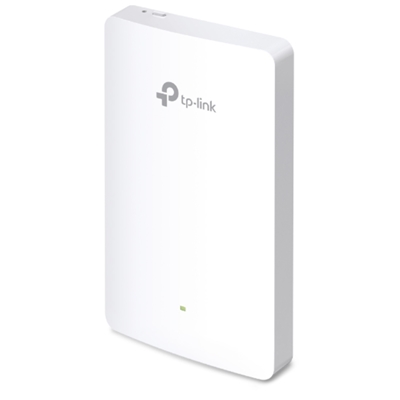

WIRELESS N WALL-PLATE ACCESS POINT AC1200 TP-LINK EAP225-WAL

Descrizione

CARATTERISTICHE HARDWARE

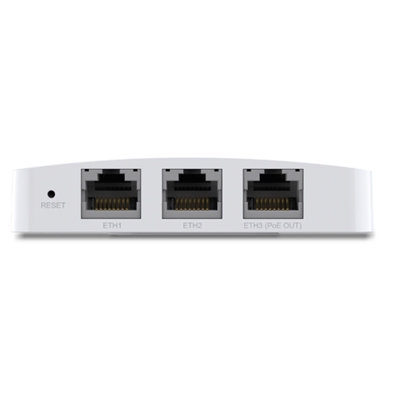

Interfaccia: Uplink: 10/100Mbps Ethernet Port*1
Downlink: 10/100Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
Tasto: Reset
Alimentazione: 802.3af/802.3at PoE
Consumo energetico: 9 watts /25.5 watts (PoE Out Included)
Dimensions: 143 × 86 × 19.7mm (5.6 × 3.4 × 0.8 in)
Antenna: 2 Dual-Band Antennas
2.4GHz: 2*3dBi
5GHz: 2*4dBi

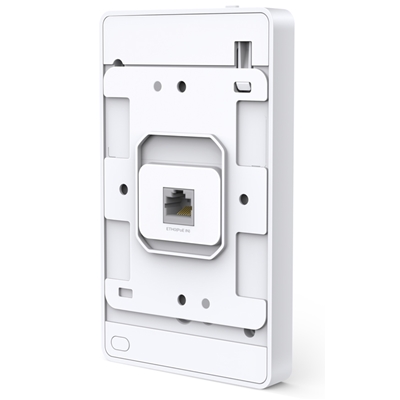

Tipo di montaggio: Wall Plate Mounting
Physical security lock: Yes
Hardware Watch Dog: Yes
CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11n/g/b/ac
Frequenza: 2.4GHz and 5GHz
Signal rate: 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Funzionalità wireless: 16 SSIDs（Up to 8 SSIDs on each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Sicurezza wireless: Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Potenza di trasmissione: CE:
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)
FCC:
≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)
GESTIONE
Omada Cloud Access: Yes
Omada App: Yes
Omada Cloud Controller: Yes
Omada Controller Software: Yes
Avvisi e-mail: Yes
LED ON/OFF: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
Log di sistema locale e remoto: Local/Remote Syslog
Telnet: Yes
SSH: Yes
Gestione web-based: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Certificazione: CE, FCC, RoHS
Contenuto della confezione: AC1200 MU-MIMO Wall-Plate Access Point
EAP225-Wall
Installation Guide
Mounting Screw
Requisiti di sistema: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Ambiente: Operating Temperature: 0°~40° C
Storage Temperature: -40°~70° C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
