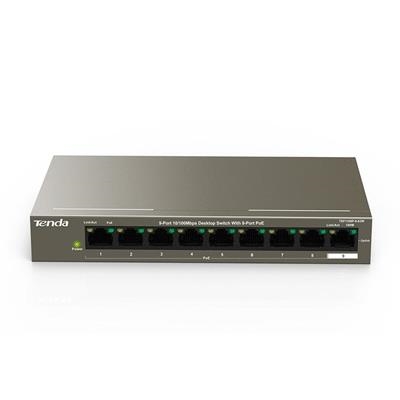

SWITCH 9P LAN 10/100M TENDA TEF1109P-8-63W DESKTOP -8P POE-

Descrizione

Standard&Protocol
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE802.3ab、IEEE 802.3af、IEEE 802.3at

MTBF
≥50,000 hours(about 5 years)

Indicator
Link/Act, PoE Status, Power, 100M

Fixed Port
8 10/100Base-TX RJ45 Ports(Data/Power)
1 10/100Base-TX RJ45 Port(Data)

Lightning Protection
6KV

Wire-speed forwarding
Support

Switching Capacity
1.8 Gbit/s

MAC Address Table
4K MAC

PoE supply management
Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair)
in full configuration：<63W
PoE Max Power Supply：58W

Dimension
177.5mm*104mm*26mm (W × D × H)

Input Voltage
AC：100－240V～ 50/60Hz
DC：51V /1.25A （Power Adapter ）

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

One-key Mode
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).

Certification
3C、FCC、CE、RHOS
