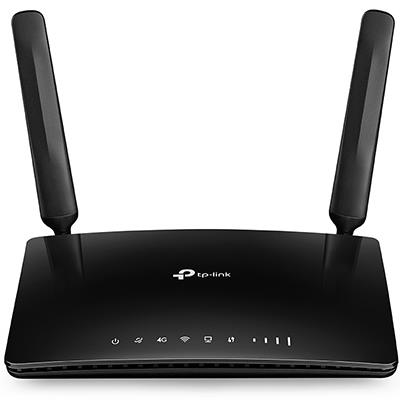

ROUTER AC1350 WIRELESS DUALBAND 4G LTE TP-LINK ARCHER MR400

Descrizione

CARATTERISTICHE HARDWARE

Interfaccia 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot

Tasto WPS/Reset Button, Wireless On/Off Button, Power On/Off Button

Antenna 3 Internal Wi-Fi Antennas,

2 External 4G LTE Antennas

Alimentatore esterno 12V/1.5A

Dimensioni ( L x P x A ) 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)

CARATTERISTICHE WIRELESS

Standard wireless IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequenza 2.4GHz and 5GHz

Signal rate 450Mbps at 2.4GHz, 867Mbps at 5GHz

Sensibilità di ricezione 5GHz: 11a 54M: -74dBm

11ac HT20: -67dBm

11ac HT40: -64dBm

11ac HT80 : -60dBm

11n HT20: -71dBm

11n HT40: -70dBm

2.4G: 11g 54M: -76dBm

11n HT20: -73dBm

11n HT40: -67dBm

Potenza di trasmissione CE: <20dBm(2.4GHz), <23dBm(5GHz) Funzionalità wireless Enable/Disable Wireless Radio, WMM,Wireless Statistics Sicurezza wireless 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Tipo di rete 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) CARATTERISTICHE SOFTWARE QoS (Quality of Service) Traffic Control(IP QoS) Modalità operative 3G/4G Router, Wireless Router Tipo WAN Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Gestione Access Control, Local Management, Remote Management DHCP Server, Client, DHCP Client List, Address Reservation Port forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP VPN pass-through PPTP, L2TP, IPSec Gestione accessi Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding Protocolli Supports IPv4 and IPv6 Rete ospiti 2.4GHz guest network x 1, 5GHz guest network x 1 VPN IPsec Supports up to 10 IPSec VPN tunnels ALTRO Certificazione CE, RoHS Contenuto della confezione AC1350 Wireless Dual Band 4G LTE Router, Archer MR400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide Micro to Standard SIM Card Adapter Nano to Standard SIM Card Adapter Requisiti di sistema Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers SIM Card Ambiente Operating Temperature: 0&#8451;~40&#8451; (32&#8457; ~104&#8457;) Storage Temperature: -40&#8451;~70&#8451; (-40&#8457; ~158&#8457;) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
