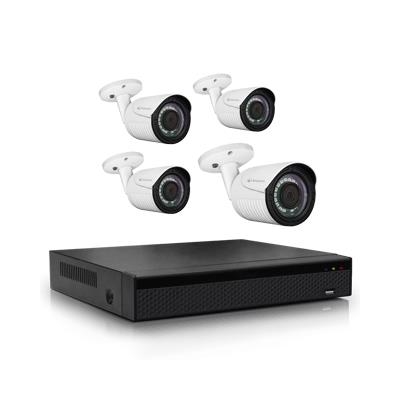

KIT VIDEOSORVEGLIANZA IP ATLANTIS A11-UXNVR09-KIT 9 CANALI+4

Descrizione

Product Name
NVR UX09

Code
A11-UXNVR09

Video Channel Supported
9 x 1080p@225FPS (max 60mbps)

Chipset
HiSilicon 3520DV300

Video Output
• 1 x HDMI (up to 1920×1080)
• 1 x VGA (Monitor) (up to 1920×1080)

Audio Input
1 x RCA (Microphone)

Audio Output
1 x RCA (Speaker, 200mV 1K Ohm)

PTZ
LAN

Storage
1 x 3,5″ SATA1/2 (up to 2TB)

Other Connectors
• RJ-45 for Ethernet 10/100 Base-T
• 2 x USB (mouse and external storage pheripherals)
• DC power jack (12VDC@2A)

PoE Ports
N/A

Power Adapters
Input:100-240VAC, 50/60Hz, 0.6A Max
Output:12VDC, 2.0A, 24W Max

Video System
PAL

Video Compression
H.264

FPS Full HD (1920×1080)
225 FPS Recording / 50 FPS Playback (max 60mbps)

Audio Codec
8Khz, 16 Bit ADPCM

Event (Action)
– Motion Detection (Recording, Buzzer, Mail/FTP)
– HDD (Buzzer, Mail)

Recording Mode
• Always
• Schedule
• Alarm Detection (Motion)
• Manual

Security
1 x Admin, Nx Users (with different level)

GUI Language
English, Italian

Advanced Networking
• Atlantis DNS (24 months free subscription ), DynDNS, No-IP
• P2P (using QR code the customer can remotely control the device without any configuration)

Browser (not LIVE View)
IE (Active X), FireFox, Chrome, Edge

SmartPhone
Android / IOS (Triox APP)

Backup
• USB Flash (FAT 32)
• USB HDD HD (FAT 32)
• Network (Browser IE or CMS)

System Requirements (only for WEB configuration or Live View with Internet Explorer)
– TCP/IP protocol must be installed on each PC
– Web browser, such as Microsoft Internet Explorer 6.0 or later (Active X), Chrome/FireFox/Opera/Safari
– CPU:Intel Celeron CPU E3400 @2.6GHZ or above
– Windows 7, 8 (32/64), 10
– Graphic Card: 64 MB RAM graphic cards (or equivalent on-board graphic cards)

NVR CMS
• Support connection to 16 NVRs at most and 64 channels video simultaneously
• Support visit of any video channel of different NVRs and screen dragging and random combination
• Support remote recording playback and backup
• Support off-line playing and smooth playing of backup video
• Support remote parameters configuration
• Support remote control of PTZ
• Support local capture and recording
• Support screen lock
• Compatible with all UltraPlex (IP Camera and NVR) and IP Facile Camera
• Onvif (1 month free, later need a fee for each channel)

NVR CMS System Requirements
– Windows 7, 8 (32/64), 10
– Microsoft .Net Framework 3.5 and Microsoft Visual C++2010 X86 Redistribuable Setup
– CPU:Intel Celeron CPU E3400 @2.6GHZ or above
– Multimedia: above DirectX 9.0;
– Recommended internal memory: above 4 GB
– Gigabit Card

Certifications
CE (Europe)

Dimensions (WxHxD)
260 x 215 x 45 mm

Weight
700 g

Temperature Range
• Operation: 0°C ~ 32°C
• Storage: -10°C ~ 60°C

Humidity
20% ~ 80% (non Condensing)

Housing
Aluminium

————————–

Product Name
IP Camera UX510A B

Code
A11-UX510A-B

Resolution
1 MegaPixel (1280×720)

Type
Bullet

Protocol
Onvif, RTSP

Lan Interface
RJ-45 Ethernet 10/100 Base-T

PoE
—-

Chipset
OV9732 + Hi3518E

Sensor
1/4″ CMOS

Min Illumination
0 LUX with IR ON

IR Distance
IR LED: 14u x 18 PCS (IR 850nm) Up to 12mt

IR Filter
Mechanical IR Cut Filter (light Sensor)

LENS
3.6mm /F2.0 lens (50° Hz)

Streaming
H.264/MJPEG

Resolution
Main Stream: HD 720P (1280×720)@25fps
Sub Stream: (720×480)@25fps
3rd Stream: (352×288)@25fps

Video Parameters
Brightness, Contrast, Saturation, Sharpness, Ircut mode and delay,
Exposure (Auto, Manual), BackLight, White Balance (Auto, Manual), 2D-NR, 3D-NR,
Defog, Image Enhancement (Flicker Control, SW WDR),Mirror (Horizontal, Vertical)

Access
Multiple user access levels with password protection

Max Users
– 2 simultaneous users
– Unlimited number of users using multicast
– 3 differnt users (Admin, Guest, Viewer)

Network
IP, DHCP, DNS, NTP, FTP, SMTP

Management
WEB (IE, FireFox), ONVIF (CMS, NVR)

Remote/local View
WEB (IE, FireFox), ONVIF (CMS, NVR), APP (Android, Apple), RTSP Player

Alarm
• Motion Detection (image): Mail, FTP, Cloud
• Motion Detection (video): FTP

Advanced
• Scheduled AutoReboot
• Motion Detection (10 Level)

Recording Mode
CMS, NVR, IE/Firefox, APP, FTP

CMS (x Windows)
CMS (up to 16 cameras)

System requirement
• Intel® Pentium® IV 1800MHz or compatible processor with 4GB RAM
• Windows® 7/8/10
• Internet Explorer/FireFox

Waterproof Rating
IP66

Dimensions (DxH)
60 x 150 mm

Weight
360 g

Temperature Range
-10°C ~ 40°C RH 85% Max

Housing
Metal

Power Supply
DC12V, 800mA max
